The BLM LC5 COMBO LASER CUTTING SYSTEM is the perfect match of productivity and affordability. With capabilities of cutting a sheet up to 20' X 6.5' and in the same machine processing a tube up to 4.75" The COMBO provides unique capabilities to shops with a mixture of tube and sheet cutting.  Both processes are fully automated allowing the LC5 COMBO to run unattended for hours of production.

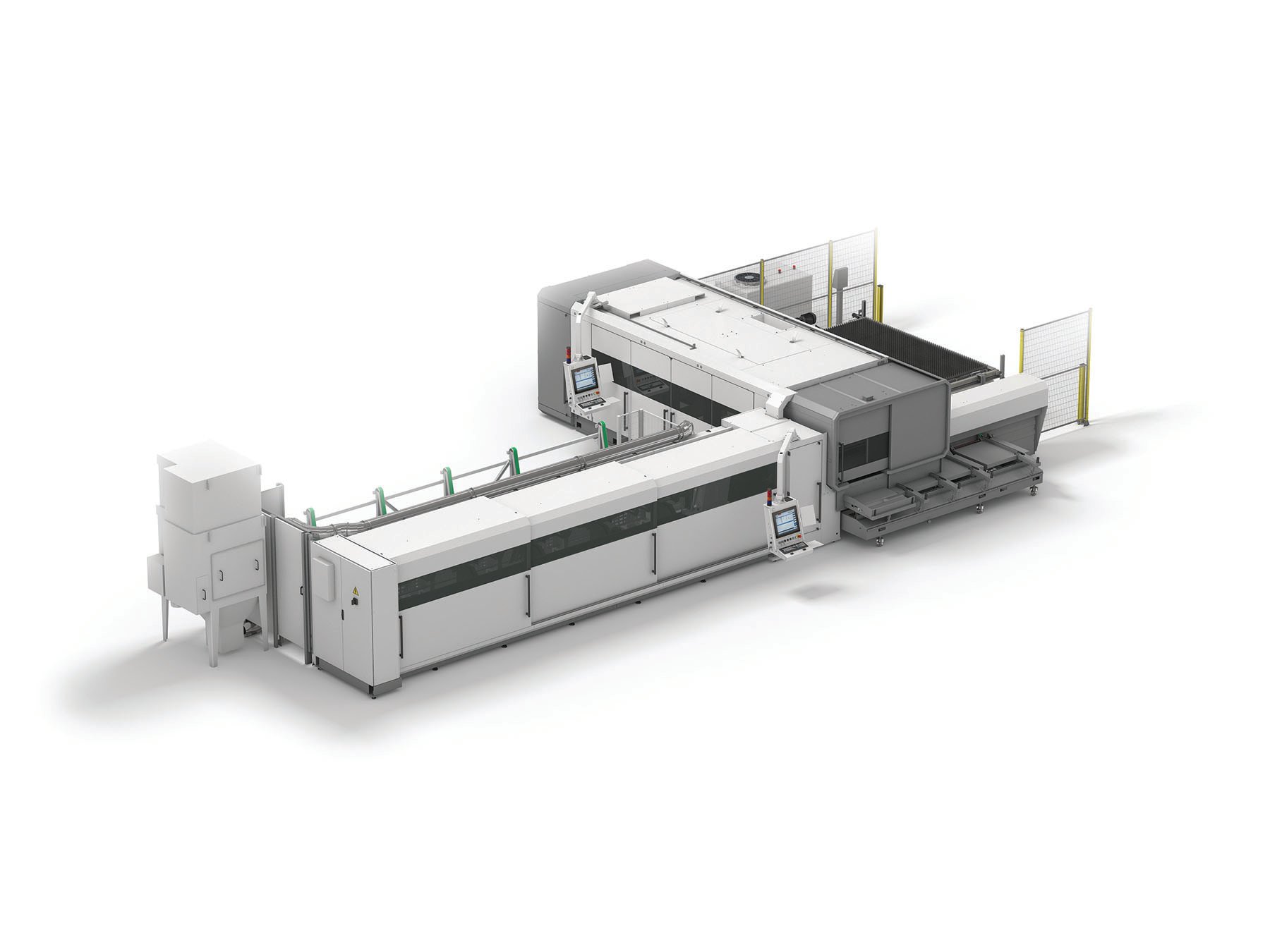

LC5 v2

FEATURES:

  • A single laser and cutting head for two complementary processes, tube and sheet metal, with performance equal to that of a dedicated system.
  • Intermediate tube to sheet changeover
  • Process tubes up to ∅ 120 mm (4.75”)
  • Automatic bundle loading up to 6.5 m (21’)
  • Sheet metal formats: 3000 x 1500, (10’ x 5’) 4000 x 2000, (13’ x 6
  • Automatic nozzle change.5’) 6000 x 2000 (20’ x 6.5’)
  • Sheet metal size in-line or transverse pallet change
  • Automatic nozzle change option
  • Fiber laser source up to 8 kW
  • Process Mild Steel, Stainless Steel, Aluminum, Copper, Brass, Galvanized
  • Artube Software – dedicated CAD-CAM software suite used to design, program, and manage the laser tube cutting processLC5 Configurations

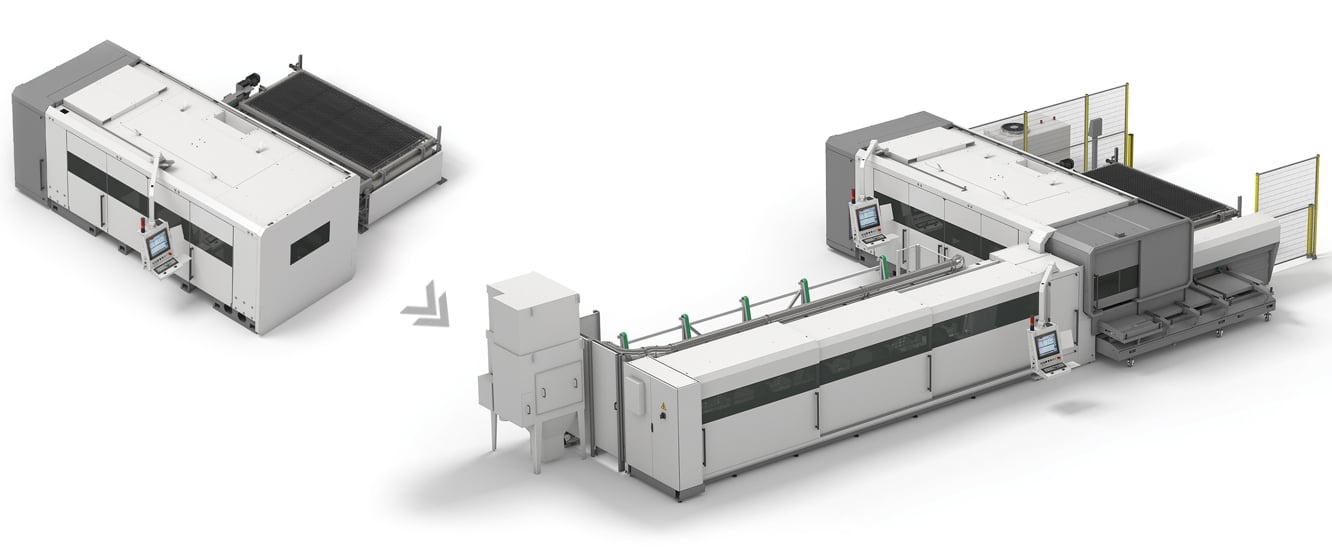

Key Technical Specifications Sheet Metal Cutting

Travel:
X-Axis (mm) 3100 – 4100 -6100 (122” – 161” – 240”)
Y-Axis (mm) 1550 – 2050 (61” – 81”)
Z-Axis (mm) 150 (6”)
Nominal Sheet Dimensions: 3000 x 1500 mm (118” x 60”)
4000 x 2000 mm (157” x 79”)
6000 x 2000 mm (236” x 79”)
Max. Pallet Weight 900 Kg (1984 lbs)
1600 Kg (3527 lbs)
2400 Kg (5291 lbs)

Performance:
Axial Speed (m/min) max. 140 (459’)
XY Speed (m/min) max. 196 (643’)
XY max. acceleration 10 m/s 2 (394”/s 2 )
Accuracy (mm) 0.05 (0.002”)
Repeatability (mm) 0.03 (0.001”)

Key Technical Specifications Tube Laser Cutting

Round tube min. 12 mm - max. 120 mm (min .47” - 4.72”)
Square tube min. 12 x 12 mm - max. 100 x 100 mm
(min. .47” x .47” - max. 3.94” x 3.94”)

Rectangular, flat, oval, semi-flat-oval tube

min. 10 x 12 mm - max. 120 x 70 mm (min. .39” x .47” - max. 4.72” x 2.76”)
Processable bar length min. 3.2 m - max 6.5 m or max. 8.5 m (min. 126” - max. 256” or max. 335”)

Processable tube weight 13.5 kg/m (9.1lbs/ft.)
Unload length 3.5 - 4.5 m (11.5’ x 14.8’)
Bundle loading system capacity 4000 kg (8818 lbs)
Materials Mild Steel, Stainless Steel, Galvanized, Aluminum*, Copper*, Brass*

Laser Power (kW) Fiber: 2 – 8

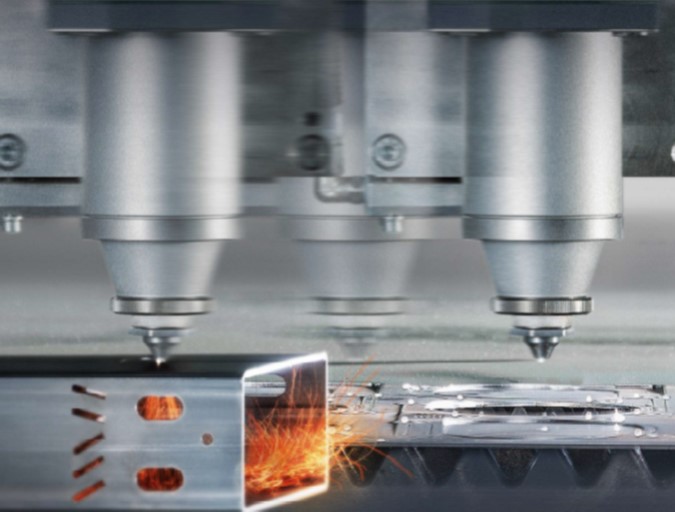

Tube_Sheet Action

*Note: Depending on the laser source used, material cutting capability is limited or restricted.
