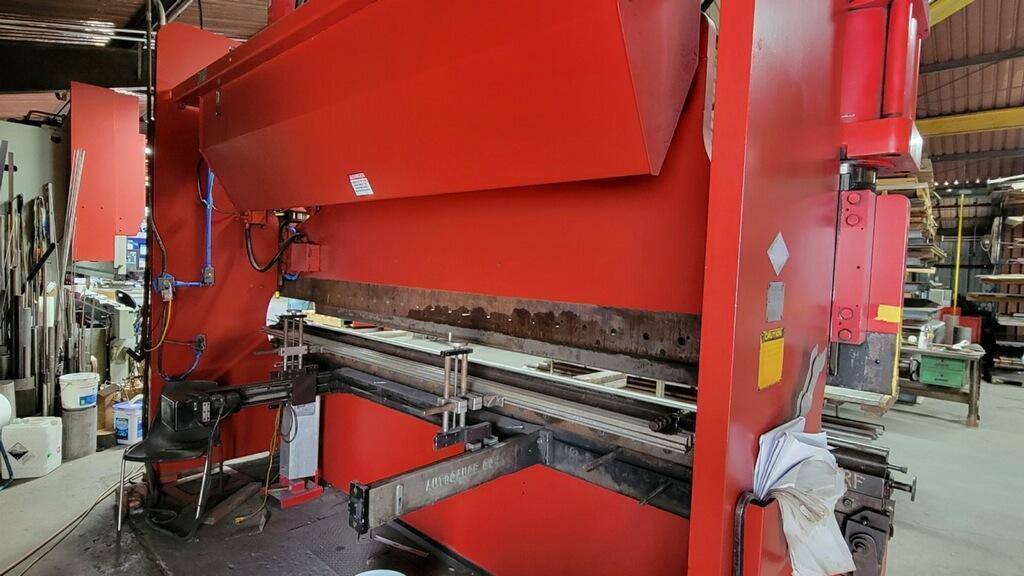

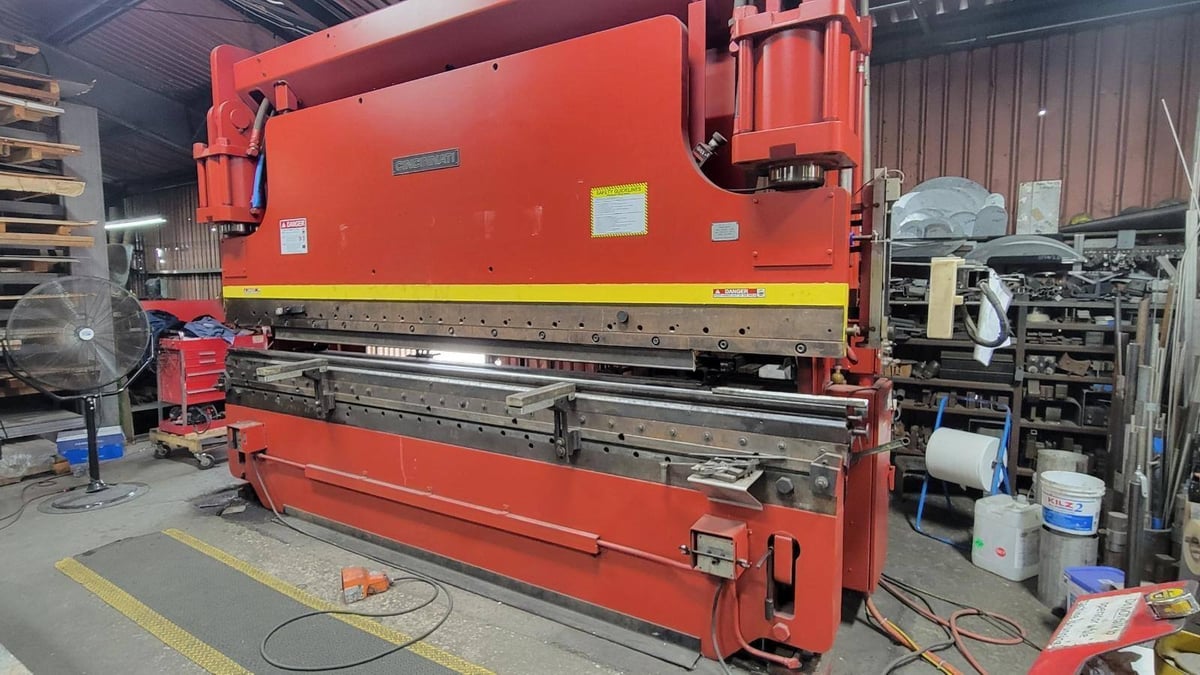

230 Ton X 14’ Hydraulic Press Brake with Autogauge CNC99 Single Axis Backgauge, Crowning Bed, Dual Palm Buttons, Foot Pedal and Stroke Control.

GENERAL SPECIFICATIONS
Capacity:                        230 Ton
Overall Length of Bed & Ram:            14’
Distance Between Housings:            12’6”
Ram Stroke:                        10”
Open Height:                        17”
Closed Height:                    7”
Throat Depth:                    8”
High Speed:                        101 IPM
Medium Speed:                    49 IPM
Low Speed:                        14 IPM
Return Speed:                    95 IPM
Motor:                            30 HP
Overall Weight:                    33,000 Lbs
Dimensions:                        168” X  48” X 132”

INCLUDES: Autogauge CNC99 Single Axis Backgauge, Crowning Bed, Dual Palm Buttons, Foot Pedal and Stroke Control.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
